This article is a bit different. SIPs are often presented as a clean, high-performance solution, but once you look closer, the system raises some real questions. Let’s walk through what’s being claimed and what’s actually happening behind the cladding.

Help us grow. We are building a community of architects and designers focused on smarter material selection. Share this with someone who would benefit.

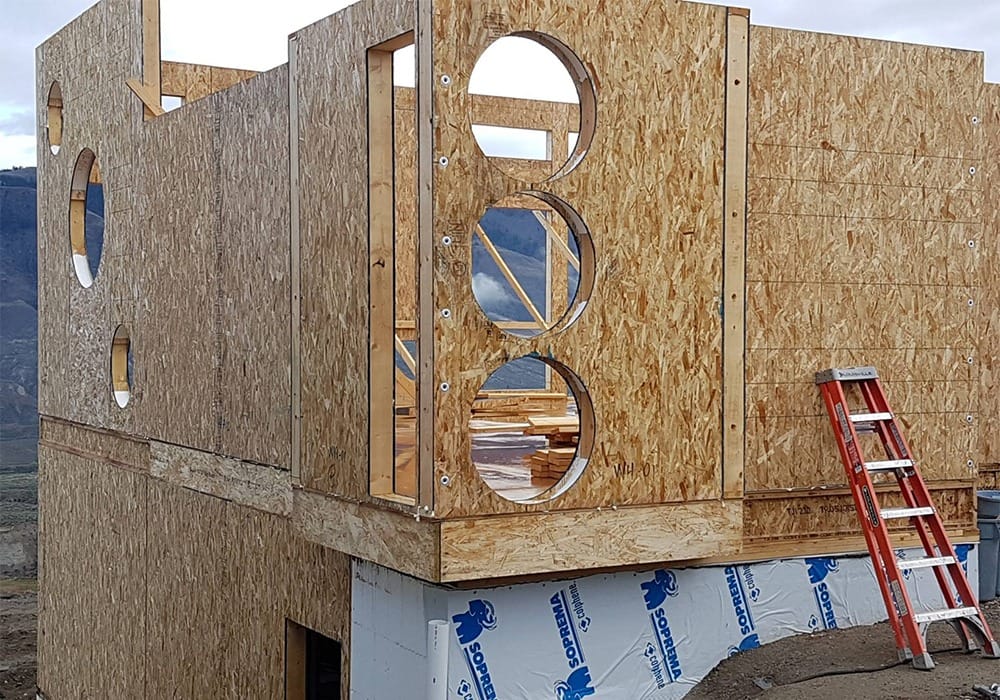

They are manufactured off site and delivered as pre-cut wall, roof, or floor components. Instead of assembling studs, insulation, and sheathing in sequence, these layers are combined into a single panel. In many applications, the panels are designed to carry loads, which reduces the amount of repetitive framing, though this depends on engineering and connection design.

Installation is generally fast and precise once panels arrive on site, assuming the design has been resolved early enough to support fabrication.

The appeal of SIPs is straightforward.

Construction can move quickly once the panels are delivered. Crews are assembling rather than building up layers, which can shorten the enclosure timeline on the right project.

Thermal performance is another consistent advantage. The insulation core runs continuously through the panel, which limits thermal bridging compared to conventional stud construction. This tends to produce more reliable envelope performance.

There is also a level of consistency that comes from fabrication. Wall, roof, and floor assemblies can be coordinated as part of a continuous envelope strategy, rather than detailed as separate systems.

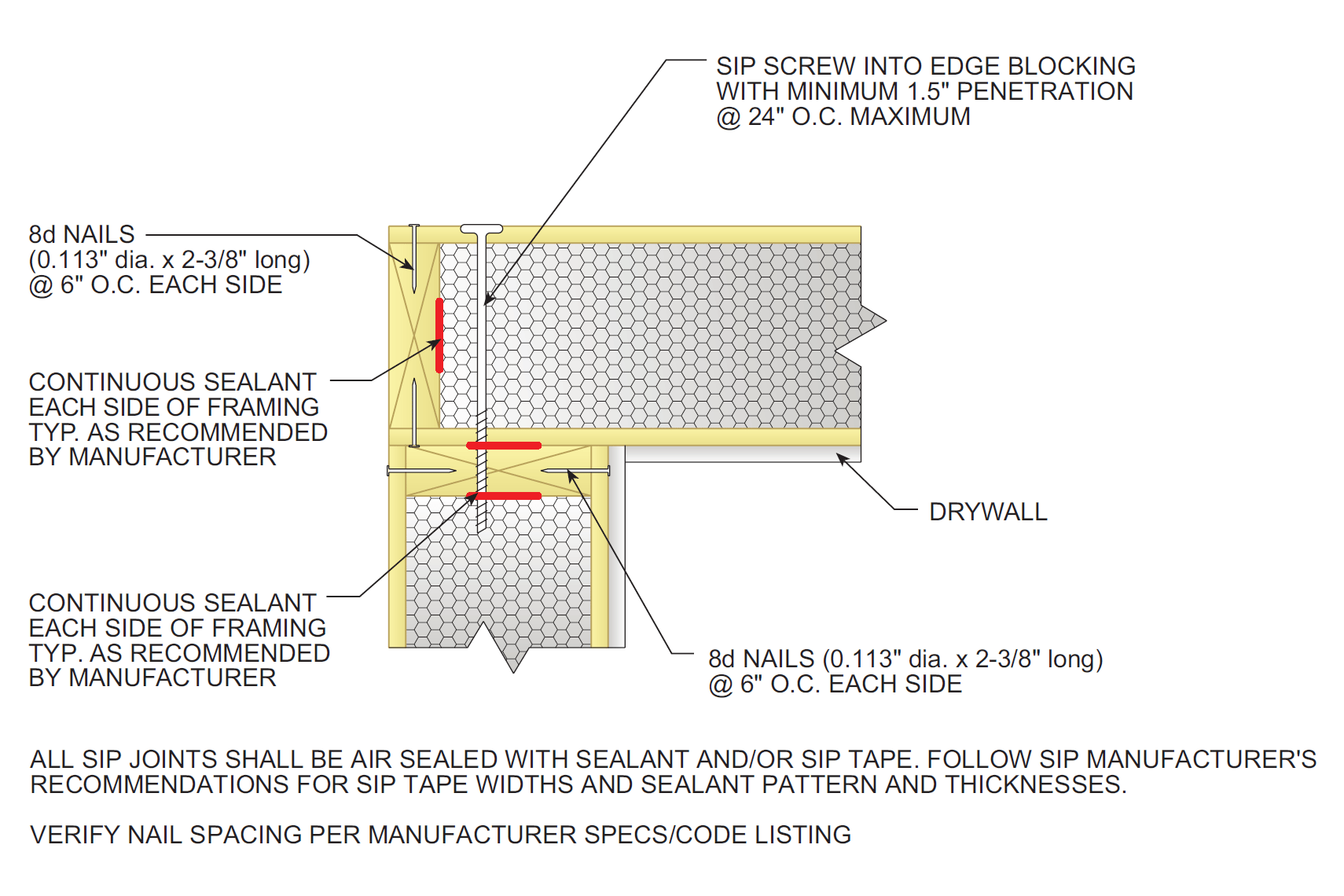

A note on the detailing: Many SIP assemblies are shown without a fully developed rainscreen, which needs to be resolved based on climate and exposure. Once coordinated, the system can integrate multiple envelope conditions efficiently. In the final detail, a ventilated roof at the fascia is achieved without conventional joists.

Time saved during construction is often offset by the need for earlier resolution. Panel layouts, openings, and connections need to be defined before fabrication begins. Changes made later in the process are more difficult to accommodate.

Coordination requirements also increase. Mechanical and electrical systems need to be planned with more precision, since routing options are more limited once panels are in place.

Errors tend to carry more weight. In site-built construction, issues can often be corrected incrementally. With prefabricated panels, mistakes are built into components and may require more significant intervention to resolve.

Performance outcomes follow a similar pattern. Airtightness and thermal continuity depend on installation quality, joint detailing, and sealing. The panel provides the potential, but the result is still dependent on execution.

They place more responsibility on early-stage design decisions. As the project progresses, flexibility becomes more limited, particularly when changes affect panel geometry or coordination with other systems.

For some teams, this aligns well with a controlled and efficiency-driven process. For others, it introduces constraints that need to be managed carefully, particularly on projects that evolve during documentation or construction.
